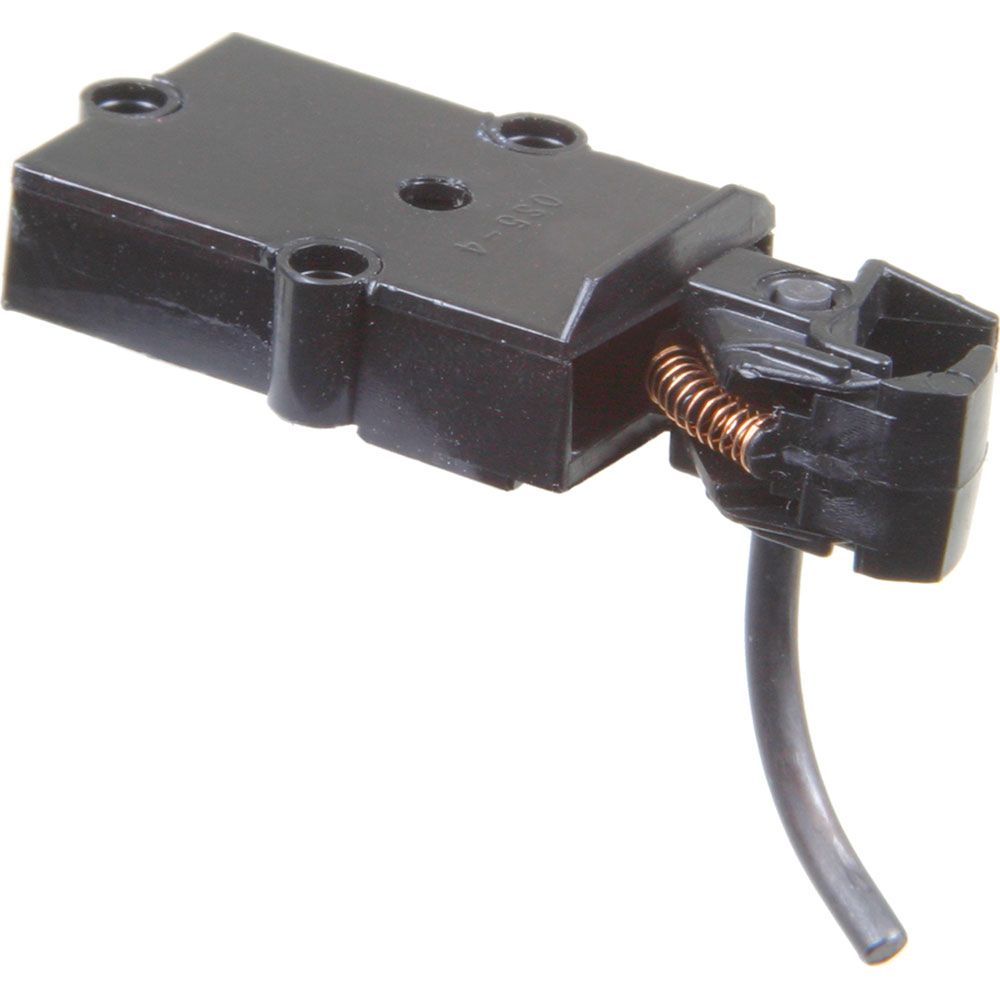

Kadee 816 O Scale Medium Centerset Metal Couplers with Plastic Gearboxes - Black
Kadee 816 O Scale Medium Centerset Metal Couplers with Plastic Gearboxes - Black
Couldn't load pickup availability
#816 Medium Centerset Metal Couplers with Plastic Gearboxes - Black - O Scale
This industry leading coupler features Original Style Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #816 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
Made in the U.S.A.
O-Scale
- Simple Drop in Design
- Trouble Free Operation
- Compatible with All Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (2) Each #816 Original Style Metal Couplers - Medium Centerset Shank
- (2) Each #817 Plastic Gearboxes & lids
- (3) Each #850 O Scale Centering Springs
| Material | - Metal |
| Shank Length | - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #850 O Scale Centering Springs |
| Knuckle Spring | - #845 O Scale Knuckle Springs |
| Head | - Original Style Head |
| Works In Place of | - #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers |
| Works With | - #817, #818, #819 Draft Gearboxes |
| Material | - Plastic |
| Dimensions | - 25/32"L x 1/2"W x 7/32"H |
| Works With | - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers |
| Mounting Height | - 25/32" |
| Centerline | - 1 1/16" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
Recommended Tools:
- #812 O Scale Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #237 Coupler Trip Pin Pliers
- #240 Double Headed Pin Vise
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
- #246 Tap (2-56) and Drills (#50 and #43)
