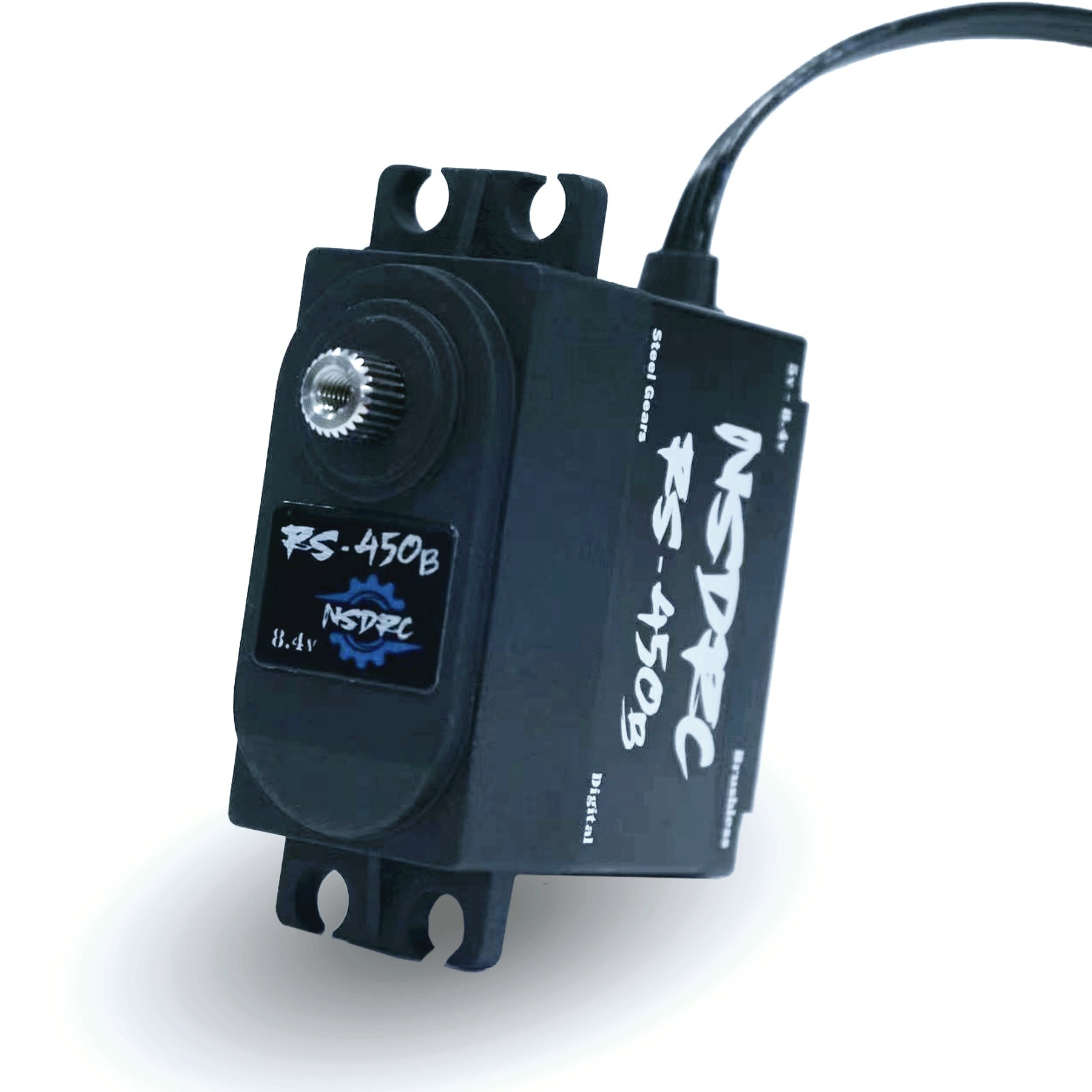

NSDRC RS450 High Torque Budget Waterproof Brushless Servo (HV)

This is the RS450 High Torque Budget Brushless Servo from No Superior Designs RC, designed with hardened stainless steel gears, and a powerful 4-pole brushless motor to inexpensively redefine speed, power, and precision in RC applications. With an astonishing 465oz-in of torque and fast 0.08 transit speed at 8.4V, the RS450 is a great choice for people looking for high capabilities without hurting the bank!

NOTE:

• Not Recommended for rock bouncers
• BEC Recommended, Not required

Features:

• Extreme Performance: Delivers 465oz-in of torque and 0.08 transit speed at 16.8V
• Durable Construction: CNC aluminum middle and bottom case for enhanced heat dissipation and durability
• Robust Gear Train: Hardened stainless steel gear train ensures smooth and reliable operation under demanding conditions
• High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance

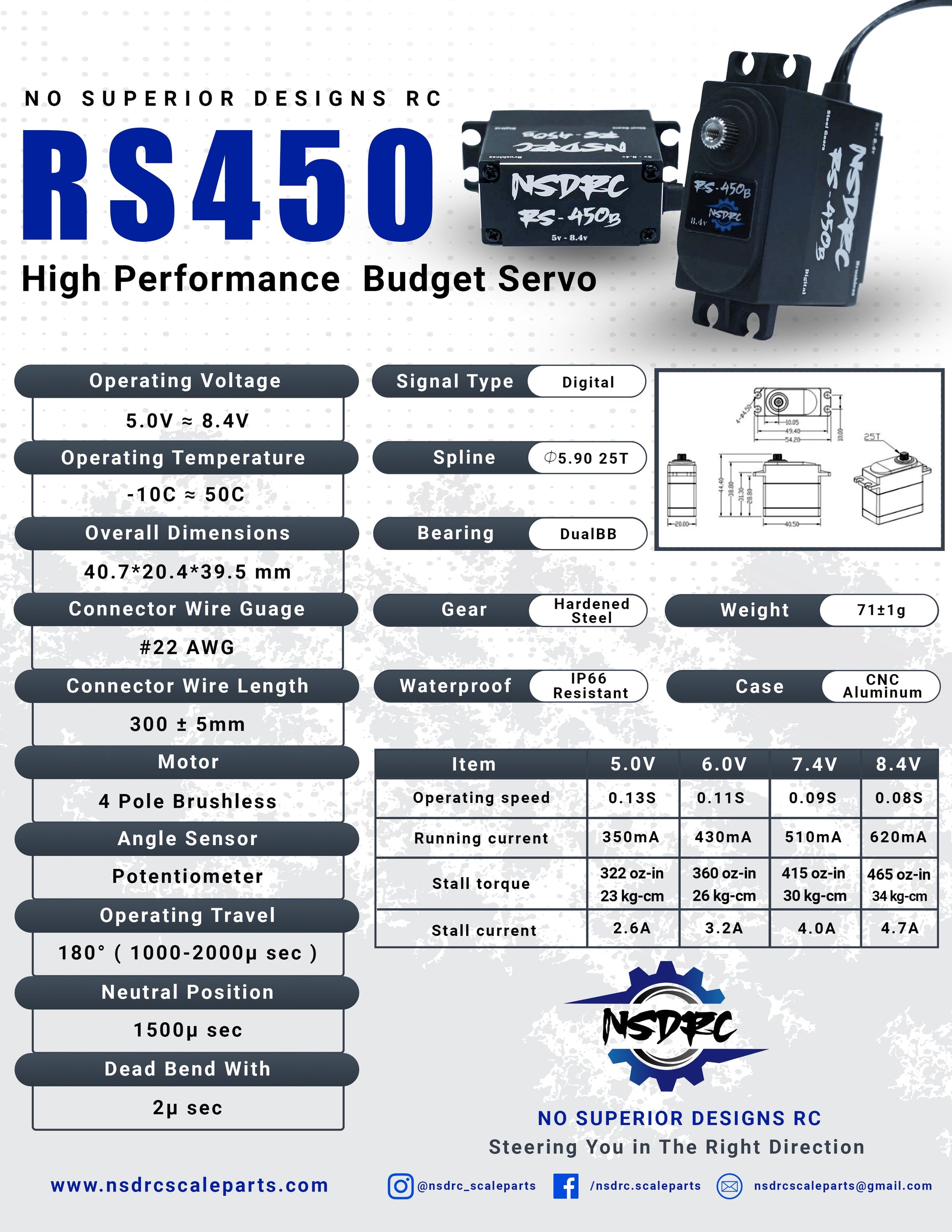

Specifications:

• Speed:
• @6.0V: 0.11sec/60°
• @7.4V: 0.09sec/60°
• @8.4V: 0.08sec/60°
• Torque:
• @6.0V: 360oz-in (26kg-cm)
• @7.4V: 415oz-in (30kg-cm)
• @8.4V: 465oz-in (34kg-cm)
• Motor: Brushless
• Operating Voltage: 5.0-8.4V
• Operating Temp.: 14F-122F (-10C/50C)
• Dimensions(LxWxH): 1.6"x0.8"x1.55" (40.7x20.4x39.5mm)
• Weight: 2.5oz (71g)
• Operating Spline: 25T

Includes:

• (1) RS450 High Torque Budget Brushless Servo (High Voltage)
• Servo Horns and Mounting Hardware
