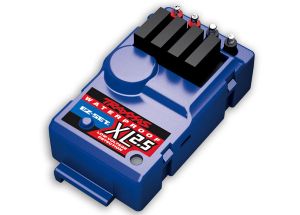

Traxxas 3024R XL 2.5 Electronic Speed Control, waterproof

XL-2.5™ Waterproof FWD/REV ESC with Low Voltage Detection (LVD)

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control in 1/16 scale and smaller models, and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. XL-2.5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-2.5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector*
The XL-2.5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Patented Training Mode™
An exclusive feature that places the XL-2.5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-2.5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

XL-2.5 LVD Waterproof ESC Features

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative waterproof design
• 12-turn motor limit for 550 size motors
• 10-turn motor limit for 380 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set^® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty
